Specifications

• Mfr Part Number: MB998IP-B

• Features:
  • Rugged Heavy duty full metal construction with commercially designed for medical &military systems, media servers, workstation, HPCs and IPCs, approved & used by Tier 1 companies
  • Perfect for rugged applications and complies to flammability requirements
  • Fits 8 x 5mm to 7mm 2.5" SATA hard drives or SSD's in a single external 5.25" bay for high performance RAID applications
  • Dual 40mm user-controllable fans, with settings for high, low, and off

  • Connected by 2x Mini-SAS HD data cables for all 8 bays, for plug-and-play compatibility with most motherboards and RAID cards
  • Requires only 2 x 15pin SATA power connectors to power all 8 bays (drives)
  • Drive label plugs to keep track of your RAID drives
  • Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
  • Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay
  • Eagle-hook lock system keeps drives secured within the enclosure

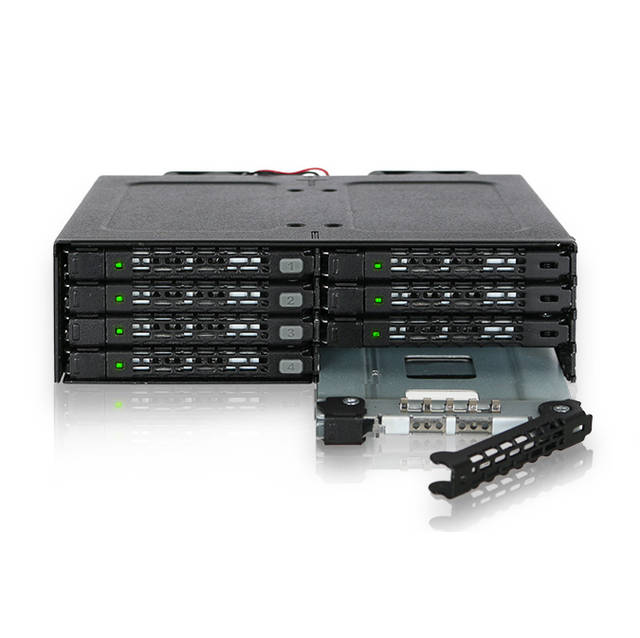

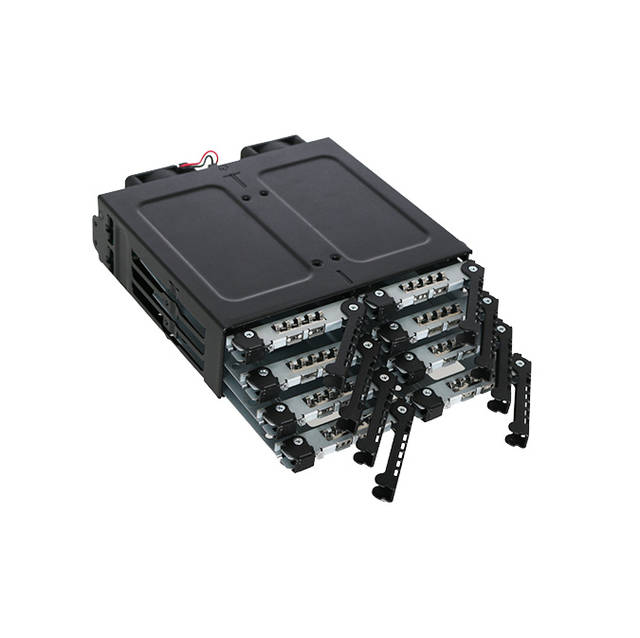

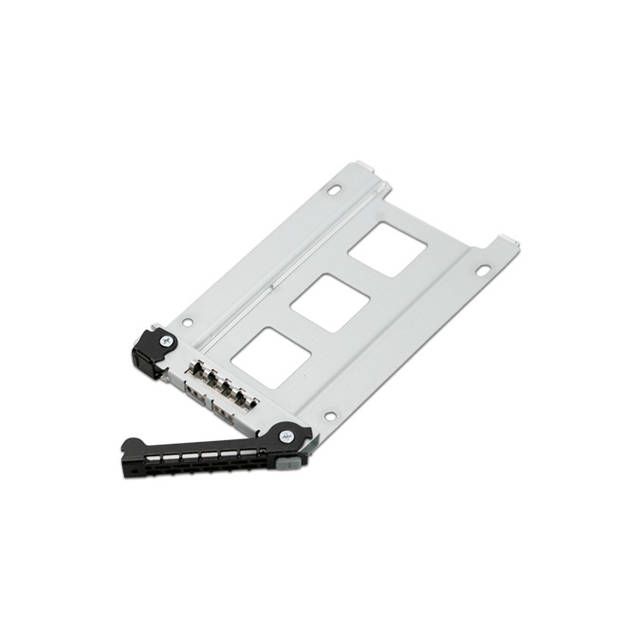

  • Removable tray system for easy maintenance
  • Supports SAS12Gbps (single channel)&SATA 6Gbps and hot-swap
  • Supports MiniSAS HD and SATA power cables with locking latch design
  • Industry leading 3 year warranty with exceptional customer support

• Structure: Metal
• Host Interface: 2x miniSAS HD 8643
• Drive Fit: 8x 2.5" SAS / SATA SSD or HDD (5 to 7mm drive height)
• Device Fit: Single external half height 5.25" bay
• Transfer Rate: SATA up to 6 Gb/sec (depending on hard drive speed); SAS 3.0 up to 12Gbps (single channel)
• Insert & Extract Connection Via: Direct SATA Hard Drive Connection

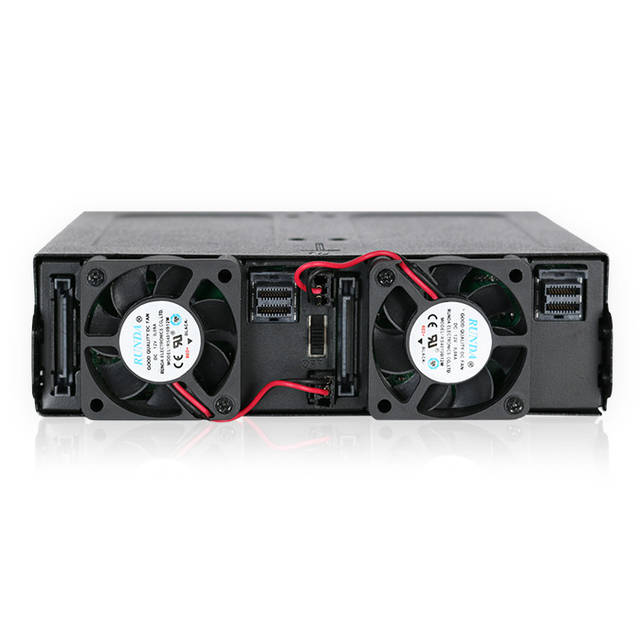

• Drive Cooling: 2x 40mm Rear Cooling Fans & Metal Heat Dispersion

• Power Input: 2x 15pin SATA Power Port
• Indicator:
  • Power: Solid Green LED

  • HDD Access: Flashing green LED
• Color: Black

• Dimensions (WxLxH): 146.0 x 172.0 x 41.3 mm
• Weight: 1.93 lbs
