Specifications

• Mfr Part Number: D5-THUNDERBOLT 3
• Feature
  • Large Storage Capacity
  • Lighting Speed
  • Dedicated DP Interface
  • Multi-Screen Display
  • Multiple RAID Supports
  • Professional and Safe
  • The Ideal Companion for All Professionals
  • Authoritative Quality Certification
• Storage
  • Disk Slot Number: 5
  • Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • File System: FAT 32, FAT 16, NTFS, and EXT4
  • Maximum Internal Raw Capacity: 80TB (16 TB drive x 5) (Capacity will vary along with the RAID type)
  • RAIDs Supported: SINGLE DISK, JBOD, RAID 0, RAID 1, RAID5, RAID10
  • Hardware RAID
  • RAID Manager Software
  • RAID Manager Software Language: English, Chineses, Japanese
  • RAID Online Expansion
  • RAID Migration
  • RAID Auto-rebuilding

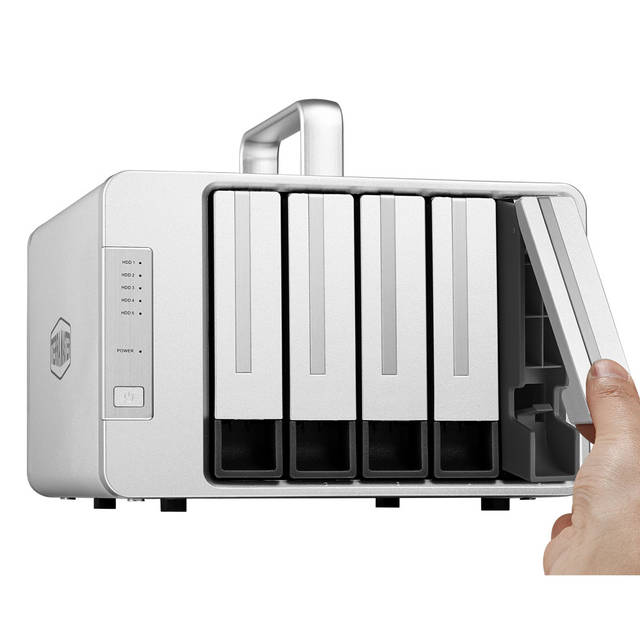

  • Drive Hot Swap
  • HDD Sleep
  • HDD S.M.A.R.T. Inspection
  • Sector Inspection and Parity Check
  • SSC Cache
  • Daisy Chain
  • HDD NCQ Technology
  • Alert Notice
  • Event Log
• Working Temperature
  • Working Temperature: 5C ~ 40C (40F ~ 104F)
  • Storage Temperature: -20C ~ 60C (-5F ~ 140F)
  • Relative Humidity: 5% ~ 95% RH
• Supported OS: Windows OS, Mac OS
• Reading/writing Speed (max.)
  • Reading Speed (max.):

    - Read: 1035MB/sec(Use HDD under RAID 0 mode)
    - Read: 830MB/sec(Use HDD under RAID 5 mode)
  • Writing Speed (max.):

    - Write: 917MB/sec(Use HDD under RAID 0 mode)
    - Write: 850MB/sec(Use HDD under RAID 5 mode)

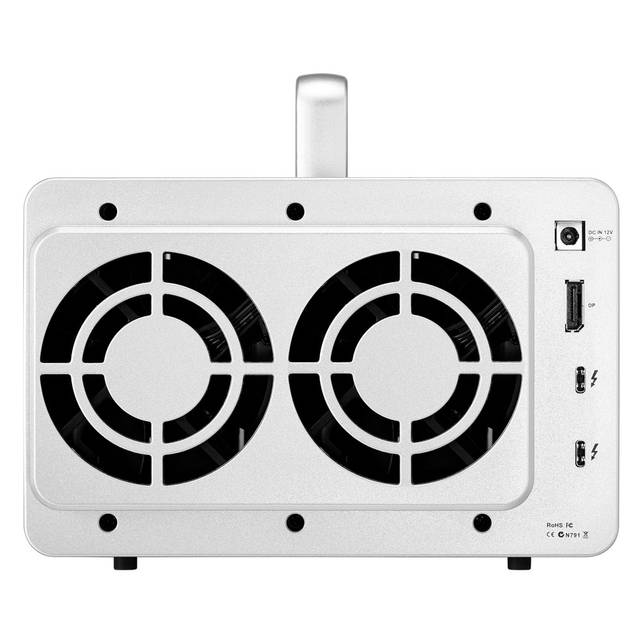

• External Ports: 2 x Thunderbolt 3 (40Gb); 1 x DP 1.2, DC IN 12V Power Socket
• System Fan: 80 mm x 80 mm x 25 mm 2 pcs
• Fan Mode: Smart
• Noise Level: 19.8dB(A)
• Power Supply: 120W
• AC Input Voltage: 100V to 240V AC
• Current Frequency: 50/60 Hz, single phase
• Power Consumption: 76.8W(Access)
• Warranty: 2 years
• Certificate: FCC, CE, CCC, KC
• Environment: RoHS compliance
• Dimensions (WxDxH): 225.0 x 176.0 x 227.0 mm
• Package Dimensions (WxDxH): 275.0 x 210.0 x 300.0 mm
• Weight: 2.3 Kg (Net); 3.5Kg (Gross)
• Package Contents: Host unit (x1), Power cord (x1), Thunderbolt 3 cable (40Gbps) (x1), Quick Installation Guide (x1), Limited Warranty Note(x1), Screws(a few), Power adapter (x1)
