specification:

• Mfr Part Number: NUSCAN 2600U

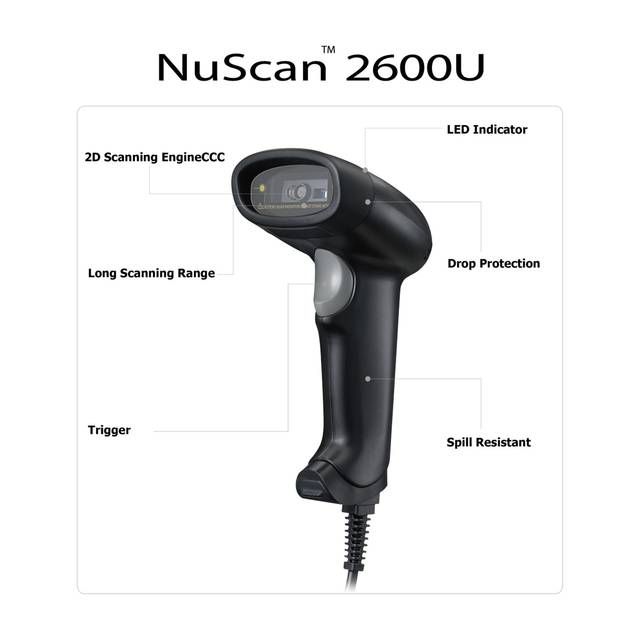

• Features:
  • 2D Scanning Engine: The 2D scanning engine offers decoding capability for 2D barcodes such as QR Code, MicroQR, PDF417, Data Matrix, as well as common 1D barcodes
  • Reliable Data Collection: The scan rate ensures accuracy, therefore increasing efficiency. Its driver-less operation makes it easily compatible with both Windows and Mac operating systems
  • Superior Scanning Performance: Equipped with a 640x480 CMOS sensor the scanner has a motion tolerance of 5 inches per second, offering fast and accurate scanning results
  • Drop Protection: The drop-protection design prevents damage due to accidental drops of less than 1.5 meters
  • Long Scanning Range: The scanner is able to scan barcodes up to a distance of 10 inches
• Electrical:
  • Power Input voltage: 5VDC +- 5%
  • Working Current: 120mA
  • Light Source: White LED and 640nm visible Red LED
• Performance:
  • Interface: USB
  • Sensor: 640x480 CMOS Sensor
  • Minimum Resolution Supported (2D): 5 mil
  • Depth of Field: 0-10 inches (13mil UPC-A, PC 100%)
  • Scan Rate: 30 frames per second
  • Scan Angle: Roll: +-30, Pitch: +-60, Skew: +-60
  • Print Contrast: >25% EAN13 10 mil
  • Alert Operation: Blue LED light indicator and beeper
• Environmental:
  • Operating Temperature: -20C to 50C (-4F to 122F)
  • Storage Temperature: -40C to 70C (-40F to 158F)
  • Operating Humidity: 20% ~ 95% (non-condensing)
  • Storage Humidity: 5% to 95% (non-condensing)
  • Shock Resistance: Withstanding 1.5m freefall drops
  • Regulatory: FCC, CE, RoHS
  • Country of Origin: Made in Taiwan
• Supported Symbologies:
  • 1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5
  • 2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR, Aztec
• System Requirements:
  • Windows 10, 8, 7, Vista, XP, 2000
  • Mac OS X
  • Interface: USB
• Includes:

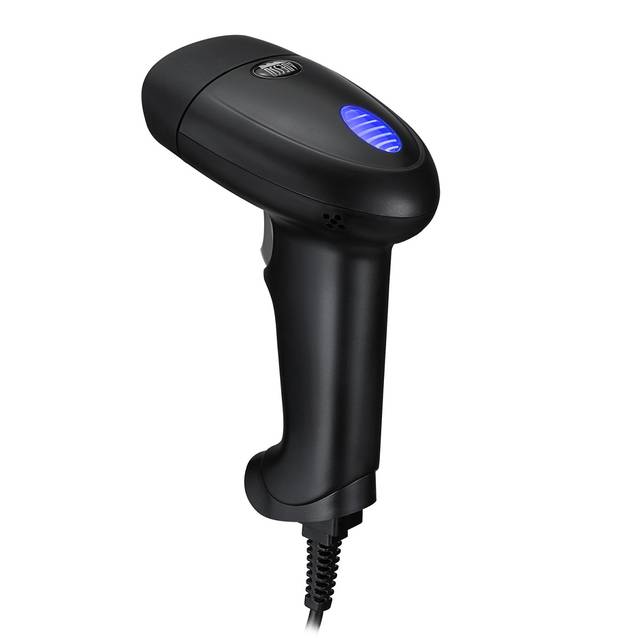

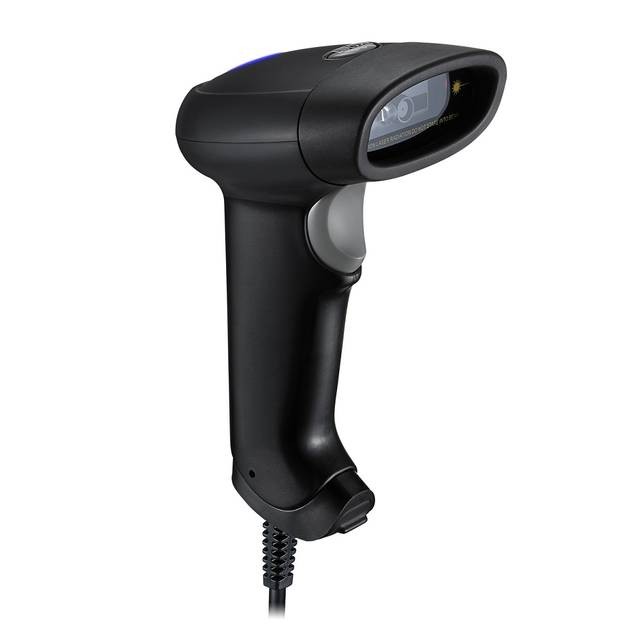

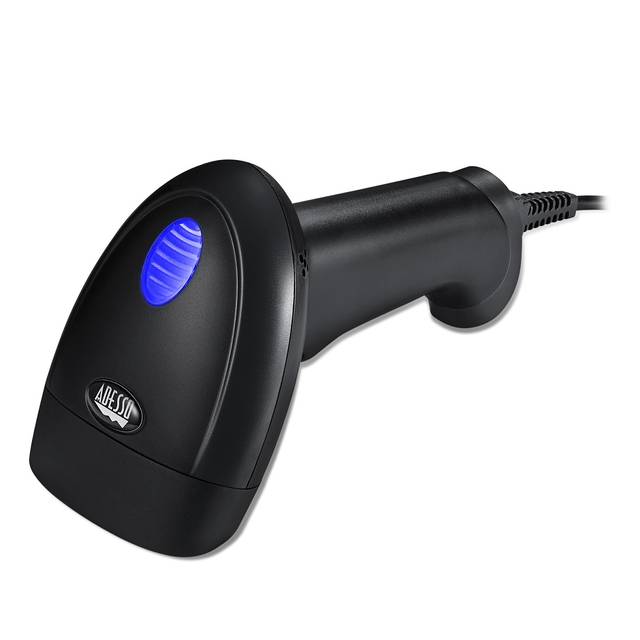

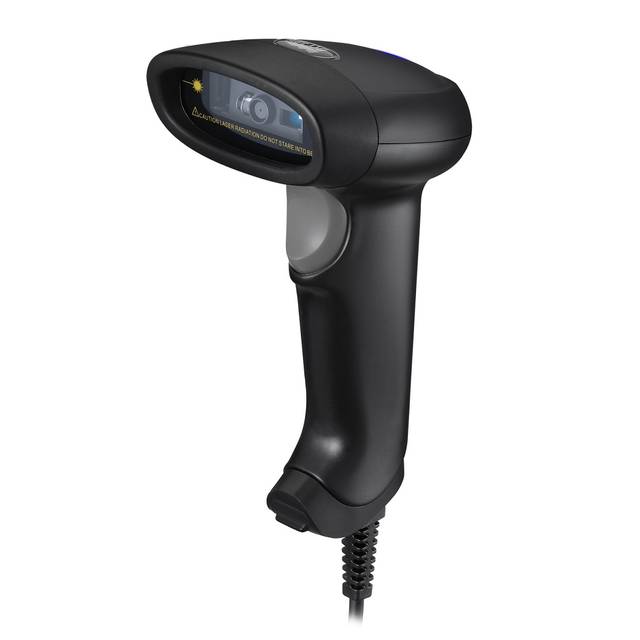

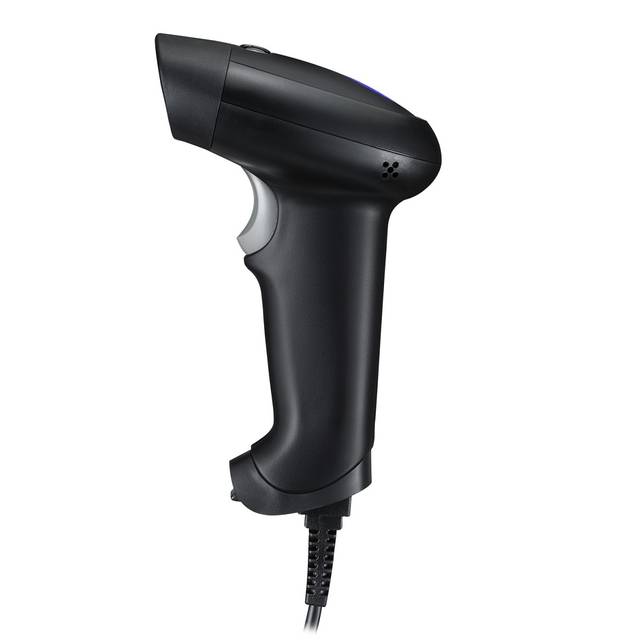

  • Adesso NuScan 2600U Handheld 2D Barcode Scanner
  • Quick Start Guide
• Mechanical:
  • Dimensions (L x W x H): 5.4 x 2.9 x 4.15 inch (167 x 73.5 x 105.4mm)
  • Weight: 0.43 lbs (195 g)
  • Cable Length: 6 Ft (1.8meters)
