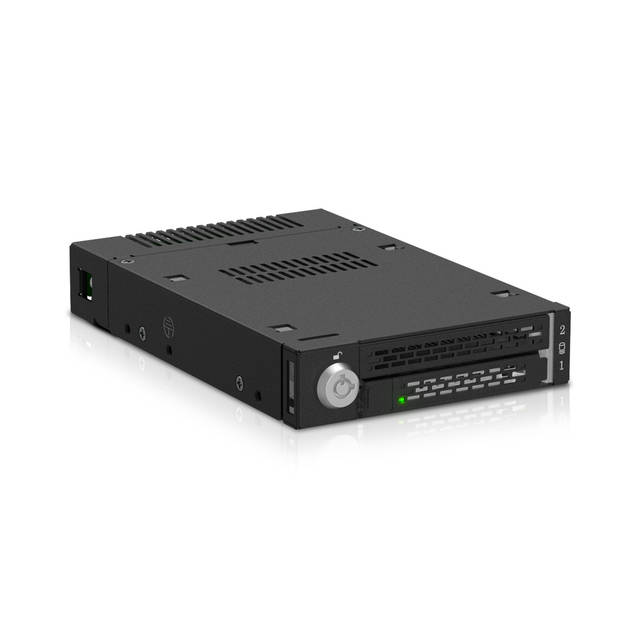

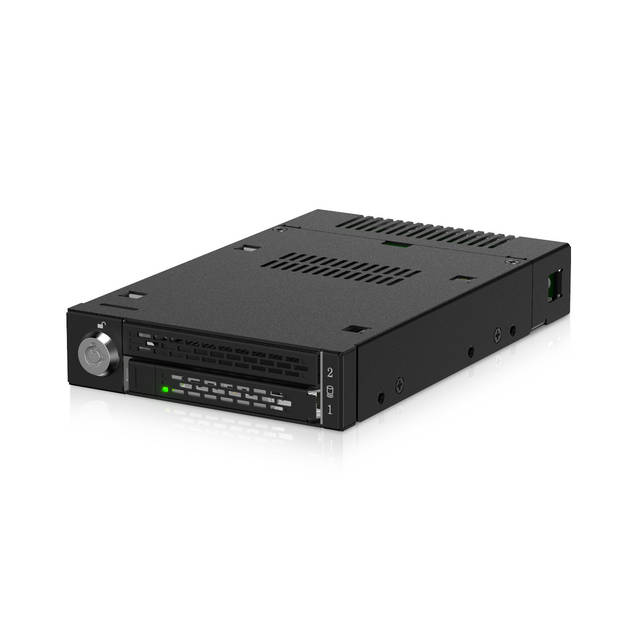

ICYDOCK ToughArmor MB833MK-B V2 M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 3.5 inch Drive Bay (1 x SlimSAS SFF-8654 4i)
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: MB833MK-B V2
- Features:
- Fits 1 x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
- Adjustable drive locker holds all length drives securely

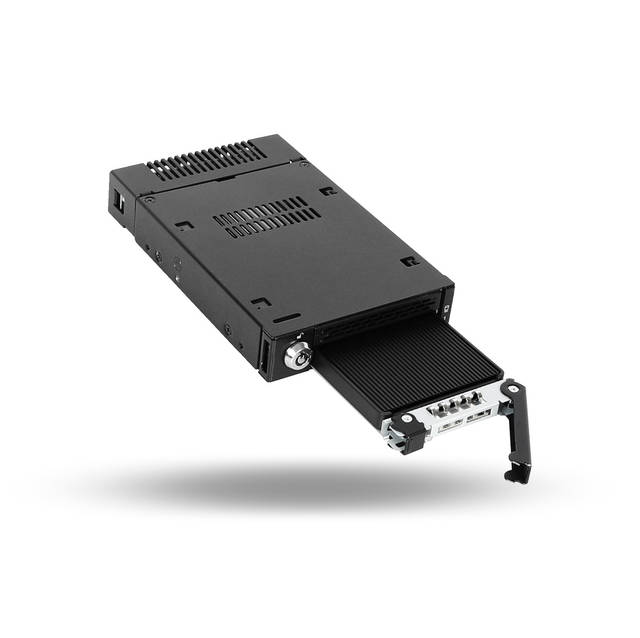

- Tool-less drive installation design for easy drive maintenance and system upgrading
- Installs into any standard external 3.5 device bay or floppy bay
- Uses a SlimSAS 4i (SFF-8654) to connect, requires NVMe host
- Supports the full NVMe bandwidth specification of 64Gbps
- Ruggedized full-metal enclosure meeting flammability requirements

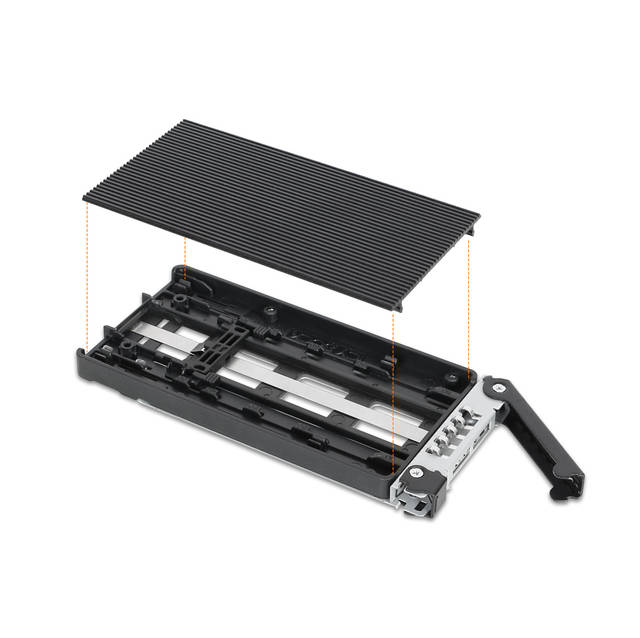

- Integrated extra-large high-efficiency heat sink and ample ventilation for excellent passive cooling
- 2-segment key lock for additional physical security
- Eagle-hook tray latch securely holds the tray inside the enclosure
- EMI Grounding protects SSDs from electrical damage
- Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
- Active Power Technology (APT) saves power by shutting the device down when no drive is installed
- Industry leading 5 years limited warranty against all defects
- Complimentary support from professionally trained technical support agents
- Color: Black
- Support Drive Size: 1 x M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110
- Compatible Drive Type: M.2 PCIe 3.0/4.0 NVMe SSD
- Number of Drives: 1
- Drive Bay: 1 x external 3.5 inch device bay

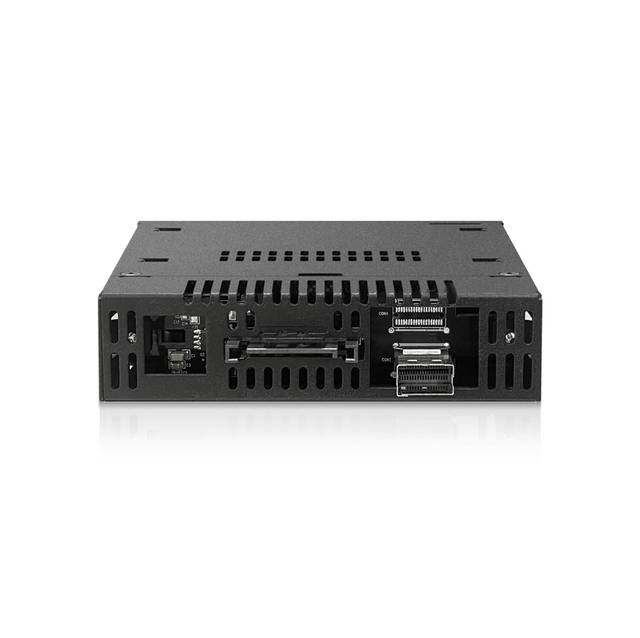

- Host Interface: 1 x SlimSAS SFF-8654 4i, pin-out defined by SFF-9402 Rev 1.1(Tri-mode HBA/RAID card compatible)
- Power Input: 1 x 15pin SATA power connector
- Transfer Rate: Up to 64Gbps (depending on hard drive speed)
- Support SSD Capacity: No limitation
- Drive Cooling: Metal heat dispersion with thermal pad for passive cooling
- Structure / Material: Metal with partial plastic
- Drive Security: 2 segment key lock
- Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
- Package Contents: Device, user manual, screws, thermal pads, keys
- M.2 Connector Insertion Rate: 5,000
- Humidity: 5%~65% RH
- Operating Temperature: 0C to 60C (32F to 140F)
- Storage Temperature: -35C to 70C (-31F to 158F)
- Compliance: CE, RoHS, REACH
- Warranty: 5 years limited warranty
- Dimension (L x W x H): 163 x 101 x 26 mm
- Product Net Weight: 473.1g
- Package Gross Weight: 552.4g
