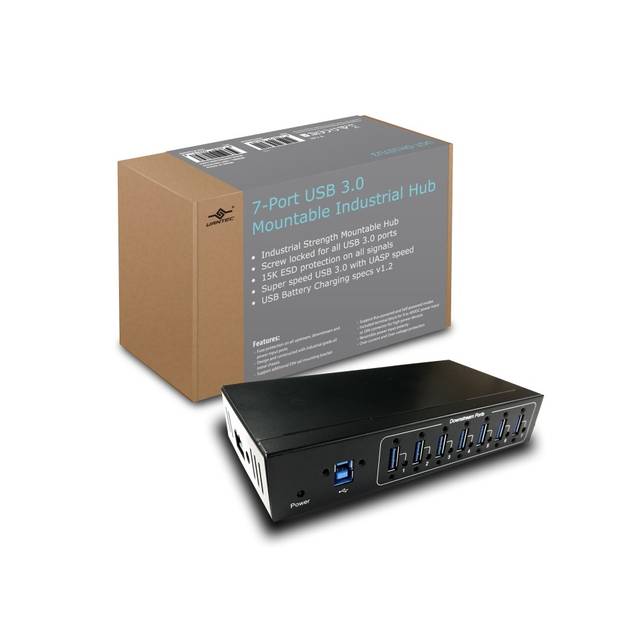

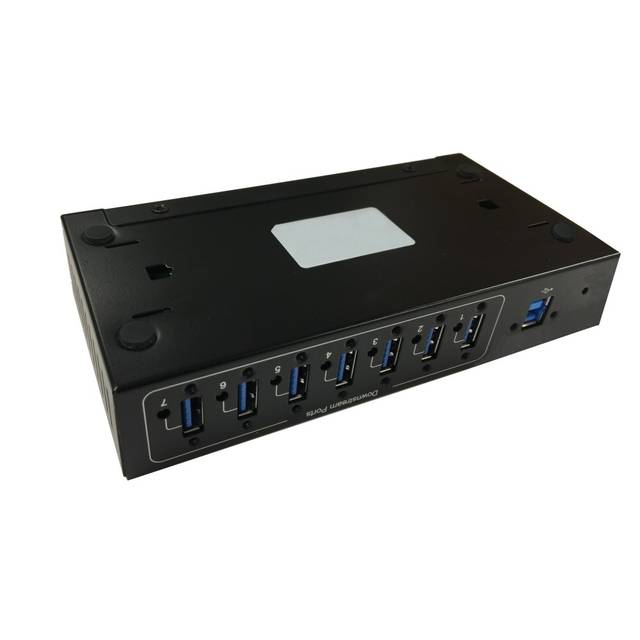

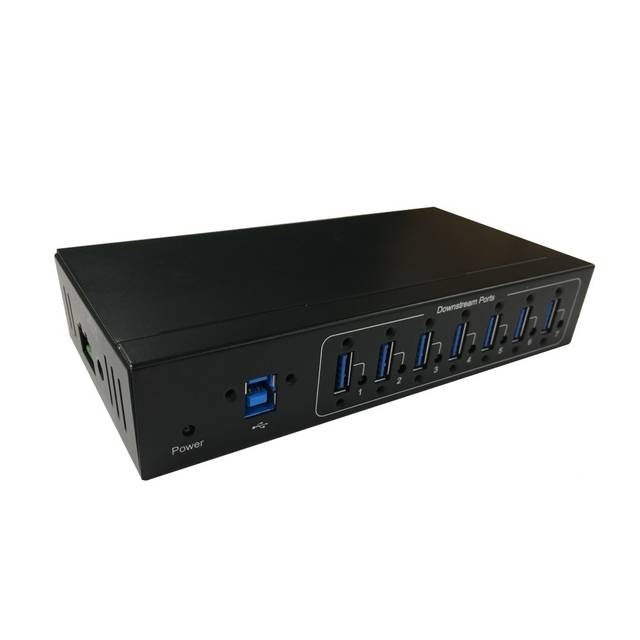

VANTEC UGT-DH107U3 7-Port USB 3.0 Mountable Industrial Hub
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: UGT-DH107U3
- Features:
- Super Speed USB 3.0 compliant with added speed using UASP protocol
- Supports USB Battery Charging specification v1.2
- Support screw locked USB 3.0 cable on all upstream, and downstream USB ports
- 15K ESD protection on all signals, power pins of all up/downstream and power input ports
- Fuse protection on all upstream, downstream and power input ports
- Design and constructed with Industrial grade all metal chassis

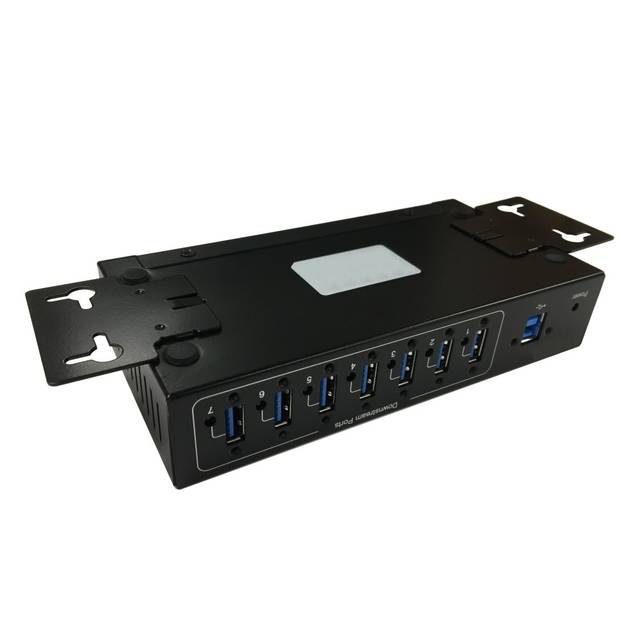

- Support additional DIN rail mounting bracket
- Support Bus-powered and Self-powered modes

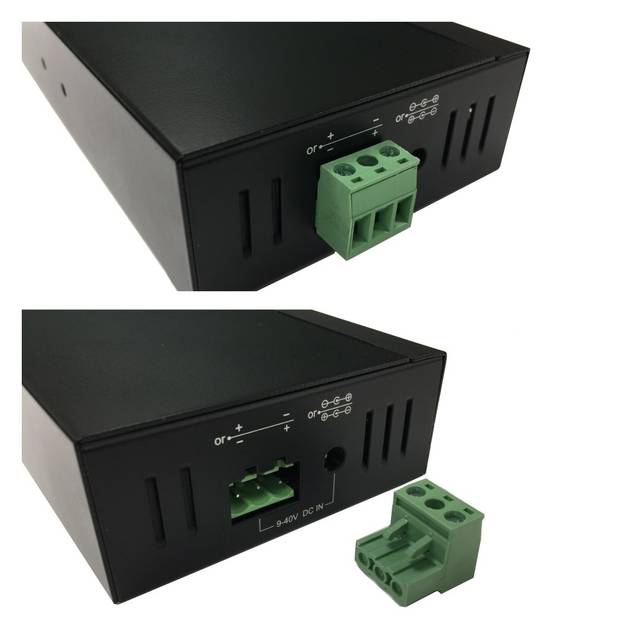

- Included terminal block for 9 to 40VDC power input or DIN connector for high power devices
- Reversible power input polarity
- Over-current and Over-voltage protection
- Clear LED Status Indicator for power and individual USB ports
- Backward compatible with USB 2.0 and 1.x specification and devices
- No Drivers needed, Plug and Play
- Support All newer OS that have USB 3.0 support
- Device Support: USB 3.0 Type A (backward compatible with USB 2.0 and 1.1)
- Down Stream Ports: 7, USB 3.0 Type A ports
- Up Stream Port: 1, USB 3.0 Type B port
- Power Input: Terminal block for 9 to 40VDC Power Input or Barrel Connector (AC Adapter not included)
- Operating Temperature: 0C to 70C (32F to 158F)
- Storage Temperature: -55C to 125C (-67F to 257F)
- Humidity: 10%~90% RH (Non-condensing)
- System Requirements:
- Microsoft Windows 7, 8, 8.1 / Mac OS X 10.6 or Greater / Latest Linux OS
- USB 3.0 Port preferred to get maximum speed

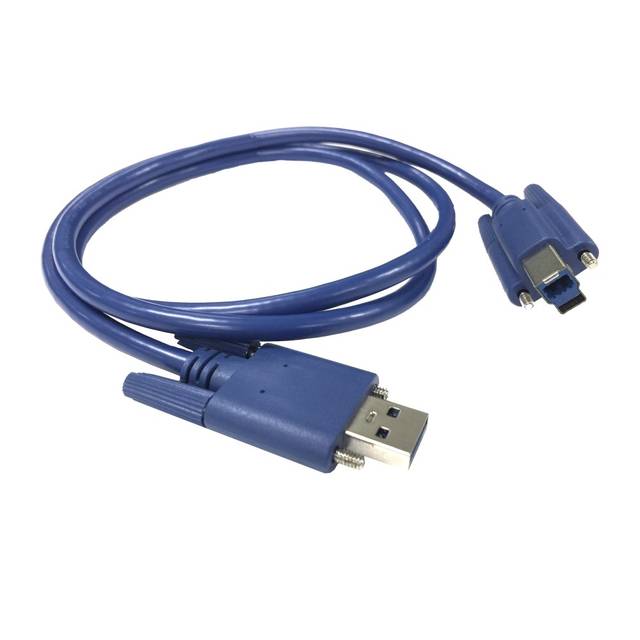

- What's Included: 7-Port USB 3.0 Mountable Industrial Hub, Screw lock USB cable (Type B to A), Wall Mounting Kit, Terminal Block, Quick Installation Guide
- Dimension: 6.2 x 3.2 x 1.3 inches / 158 x 80 x 32 mm
- Weight: 12 oz. / 340g
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
