Specifications

• Mfr Part Number: UGT-AH131U3-BK
• Features:
  • Simultaneously Power for all 13 USB 3.0 ports (Total power used may not exceed 52 watts)

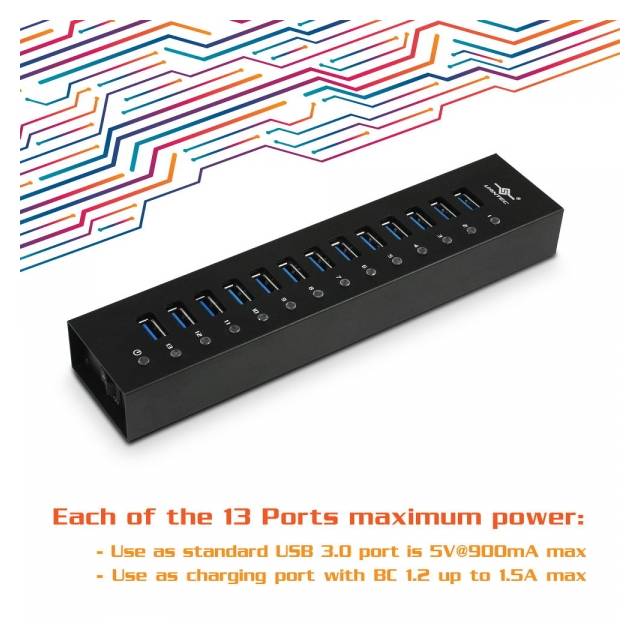

  • Each of the 13 Ports maximum power:
    • Use as standard USB 3.0 port is 5V@900mA max
    • Use as charging port with BC 1.2 up to 1.5A max
  • Premium Certified Power Adapter with high energy efficiency
  • Ready for DIN mount, Wall mount, Desk mount or sitting on the desk (comes with kit)

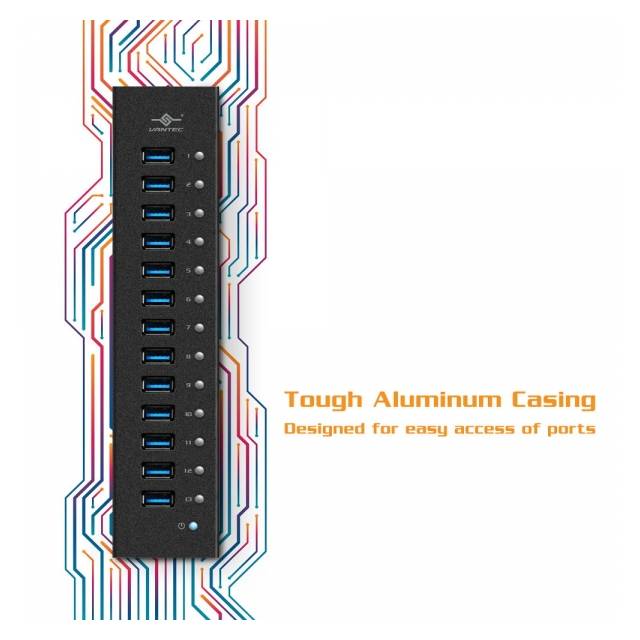

  • Ergonomically designed Aluminum Casing for easy access of ports
  • Support UASP Devices to further enhance SuperSpeed USB
  • Premium AC adapter 12V, 5A, UL 60950-1, E358966
  • Over Voltage, Over Current, and Over Heat Protection to ensure stable power
  • Support all OS with USB 3.0 and recommended USB 3.0 Port for maximum performance
  • No Drivers needed for Hub
  • Clear HUB power LED Indicator
  • Backward Compatible with all legacy USB 2.0 and 1.1 devices
  • Anti-Slip Rubber Feet; comes with wall/desk mount kit
• Device Support: USB 3.0 Type A, All Data/Charging BC 1.2 up to 1.5A capability (backward compatible with USB 2.0 and 1.1)
• Downstream Ports: 13 USB 3.0 ports Type A
• Upstream Ports: 1, USB 3.0 Type B port
• USB Cable Length: 61.8 inches / 157 cm
• Power: Premium AC adapter 12V, 5A, UL 60950-1, E358966
• Material: Aluminum Case
• Environmental:
  • Operating Temperature: 0 C to +45 C
  • Operating Humidity: 10% to 85 % RH (no condensation)
  • Storage Temperature: -10 C to +70 C
  • Storage Humidity: 5% to 90% RH (no condensation)
• System Requirements:
  • All OS with support for USB 3.0
  • Upstream USB 3.0 Port preferred to get maximum speed
• What's included:

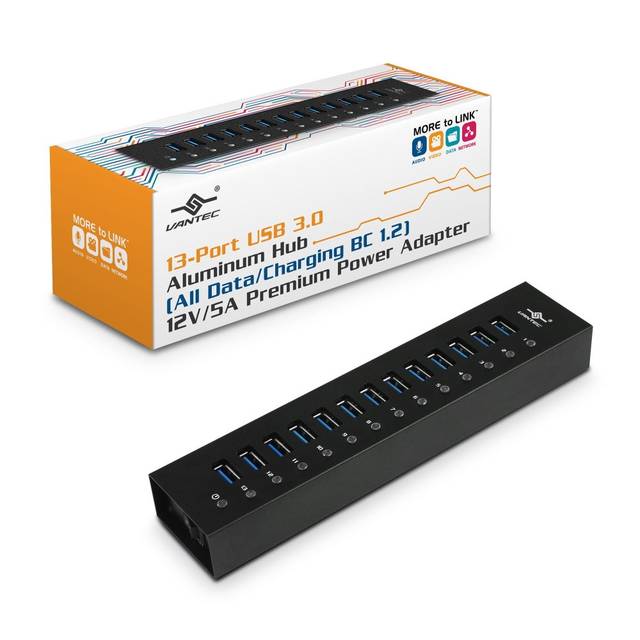

  • 1 x Vantec 13-Port USB 3.0 Aluminum Hub
  • 1 x USB 3.0 cable
  • 1 x Premium AC adapter (12V, 5A)
  • 1 x Quick Installation Guide
  • 1 x Wall mounting kit (plate and screws)
• Country of Origin: Made In China
• Dimension (L x W x H, hub only): 8.0 x 1.8 x 0.98 inches / 204.4 x 45.8 x 25 mm
• Package Dimensions (L x W x H): 8.82 x 3.46 x 3.23 inches / 224 x 88 x 82 mm
• Weight (hub only): 7.3 ozs / 208g
• Package Weight: 22.8 oz. / 645g
• Warranty: 1 year parts and labor
